-- Mechanical features
1. Wholly mechanical drive, compact structure, high dependability.
2. Tricycle drive, anti-skid, the thin material is also easy to
bend.
3. The two side wheels are asymmetric which reduce the straight
line section.
4. Side rounds of both sides can be stocked and given working.
5. Bending speed can be adjusted freely from 1.5 seconds every
300mm to 5 seconds every 300mm.
6. Roundness tolerance is ±1.0mm between the first circle and the
last circle of finished products.
7. Flatness tolerance is ±1.0mm.
-- Specifications of machine
| Carbon steel rounded diameter | Φ30mm*2.5t |
| Minimum spacing adjustment wheel | 130mm |
| The maximum distance between wheel adjustment | 180mm |
| Motor power | 3HP-4 |
| Gear box specifications | 1:28 |
| Weight | 700kg |
| Dimension | 1000x1200x850mm |
-- Applicable industry
Adapted material: steel pipe, stainless steel, copper pipe,
aluminum pipe;
Recommended application industry: automobile fittings, oil pipe for
brake, muffler, seats, motorcycle fittings, healthy equipment,
air-conditioning, bicycle, steel furniture, sanitary wares and so
on.
Automobile fittings, brake lever, silencer, seats, motorcycle,
body-building equipment, air conditioner, bicycle, steel-made
furniture, sanitation equipment and other manufacturing trades.
House structure, shipyards, automobile production, industrial
pipeline equipment, pulp, paper, chemicals, boilers, pump stations,
site fresh water and wastewater systems, municipal heating and
cooling systems, urban gas pipelines, municipal works such as
hospitals, office buildings, construction and large-scale public
buildings, medium and large-scale industries for maintenance and
repair work, power stations, installation companies, automatic fire
sprinkler systems in front of workshops.
-- Company service
1. Warranty period: We guarantee machine quality for 12 months.
During this period, if spare parts of the machine were damaged, we
can send the component to the customer by international express
service freely.
2. We can send our engineers to the customer’s factory to install
and train for using freely. The customers just need to provide the
double trip tickets, food and accommodation for our engineers. The
customer can also send your staff to our factory to learn the
operation and maintains freely.
3. Our factory provides service for customers forever, if the
customer needs operation help or technical guidance, you can
contact us by Email or telephone at any time, we provide 24 hours
on-line service.

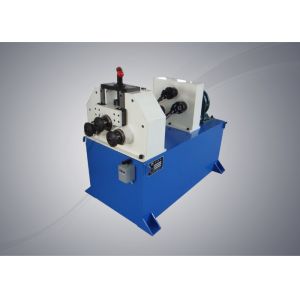

-- Pictures of machine
