-- Machine details
1. Precision cutting, both sides of tube are flat after cutting, it
is easy to connect.
2. Cutting method is simple and fast, can save a lot of work time.
3. Fast, convenient, efficient, saving labor and processing times.
4. The machine parts use imported components to ensure the service
life of the machine.
5. The whole machine saves electricity, has a long life, and the
body is smooth and bright, and the appearance is not wrinkle.
Non-technical personnel can also operate freely.
6. It can provide a light work method, according to the workplace
(site) self-design cutting program.
7. The machine is full function, and can cut a variety of built
pipelines in the power system.
8. Slide way automatically lubricated, automatic feeding. Make your
operation safer.
--Specifications of machine
| Main motor | 2/4 pole changing 1.8/1.3kw |
| Spindle speed | RPM84/42 |
| Applicable saw blade | High-speed steel saw blade |
| Outer diameter250/300/315mm |
| Cooling water pump | 90w |
| Used compressed air | 0.4-0.6mpa |
| Weight | 310kg |
| Cutting direction | 90 degree | 45 degree |
| Hollow pipe | 100 | 80 |
| Hollow square steel | 90*90 | 80*80 |
| Hollow rectangular pipe | 80*90 | 80*80 |
| Solid rectangular steel | 90*90 | 80*80 |
| Solid shafting | 55 | 45 |
| Solid square steel | 50 | 40 |
--Main application
Recommended application industry: automobile fittings, oil pipe for
brake, muffler, seats, motorcycle fittings, healthy equipment,
air-conditioning, bicycle, steel furniture, sanitary wares, house
construction, shipyards, automobile production, industrial pipeline
equipment, pulp, paper, chemicals, boilers, pump stations, site
fresh water and wastewater systems, municipal heating and cooling
systems, urban gas pipelines, municipal works such as hospitals,
office buildings, construction and large-scale public buildings,
medium and large-scale industries for maintenance and repair work,
power stations, installation companies, automatic fire sprinkler
systems in front of workshops.
--Company service
Warranty period: We guarantee machine quality for 12 months. During
this period, if spare parts of the machine were damaged, we can
send the component to the customer by international express service
freely. We can send our engineers to the customer’s factory to install and
train for using freely. The customers just need to provide the
double trip tickets, food and accommodation for our engineers. The
customer can also send your staff to our factory to learn the
operation and maintains freely. Our factory provides service for customers forever, if the customer
needs operation help or technical guidance, you can contact us by
Email or telephone at any time, we provide 24 hours on-line
service.

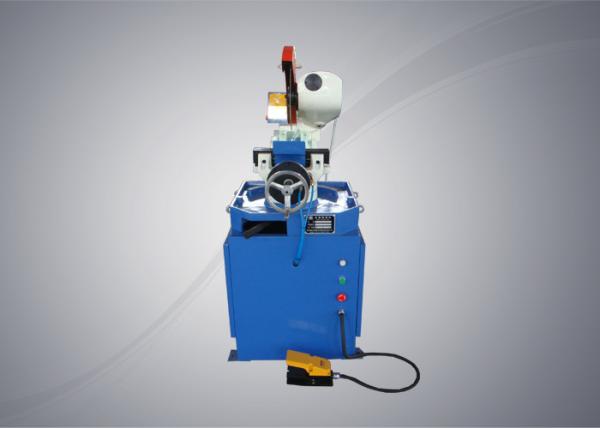

--Pictures of machine
