Hydraulic control semi automatic pipe bending machine for steel
pipe bending
-- Description of machine
This machine is equipped with hydraulic drive, and it's electrical
control system adopts touch screen control, text control and PLC
centralize control program. It is equipped with a clamping tube,
guided mode, input core, wrinkle-free, auxiliary pushing and
bending device. Its bending angle is controlled by high precision
imported angle controller. Under the control of the hydraulic, it
can bend various specifications of metal pipe and special shaped
pieces of metal in the cold state within the specified range. It is
a European style bending equipment which is professional,
high-speed and economical.
-- Mechanical features
1. PLC control, the machine running is very steady.
2. It has various functions can be chosen, such as head operation,
autoamtic, semi circulation, full-circulation and others.
3. Two angles setting, 0°-185° is chosen at freewill. It can choose
an angle or two angles continuously.
4. Mobile type foot switch with three functions, automatic start,
emergency stop and going on after emergency stop, all of them have
high safety.
5. Large volume cooling circulation system to make the machine run
more steadily.
6. Model exchanging is simple and convenient to be convenient in
flexible manufacturing.
7. The designing of the machine head and pipe bending precision is
high and can provide bending a large space.
-- Specifications of machine
Max. applicable carbon steel pipe (Taking 1.5D bending radius as an example) | Φ38.1×2.0t Φ31.8×3.5t |
Max. applicable carbon steel pipe (Taking 1.5D bending radius as an example) | Φ31.8×2.2t |
| Max. bending radius (mm) | 180 |
| Max. bending radius (mm) | 185° |
| The settable bending pipe number of each pipe fitting | 9 |
| Max. oil pressure (Mpa) | 12 |
| Motor power (HP) | 5 |
| Weight (kg) | 750 |
| Dimensions (mm) | 2700x600x900 |
-- Main application
The machine uses the microcomputer control and has strong function
and high expansion. Chinese subtitles and dialogue operation make
the machine easy to study and understand. The partition hypothesis
speed, high pipe-bending precision. 16 groups pipe-bending
information storage. All angles work forms a coherent whole. It can
install co-push, low returning-core function and can bend tubes
with thin wall thickness.
Adapted material: steel pipe, stainless steel, copper pipe,
aluminum pipe;
Recommended application industry: automobile fittings, oil pipe for
brake, muffler, seats, motorcycle fittings, healthy equipment,
air-conditioning, bicycle, steel furniture, sanitary wares and so
on.
-- Company service
1. Our factory provides service for customers forever, if the
customer needs operation help or technical guidance, you can
contact us by Email or telephone at any time, we provide 24 hours
on-line service.
2. We guarantee machine quality for one year warranty period.
During this year, we can send the component to the customer freely
if spare parts of the machine were damaged.
3. We can send our engineers to the customer’s factory to install
and train for using freely. The customers just need to provide the
double trip tickets, food and accommodation for our engineers. The
customer can also send your staff to our factory to learn the
operation and maintains freely.

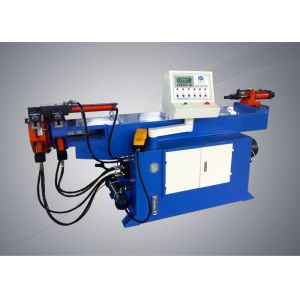

-- Pictures of machine
